Plastic tube type flow meter
[BACK]
Product Details

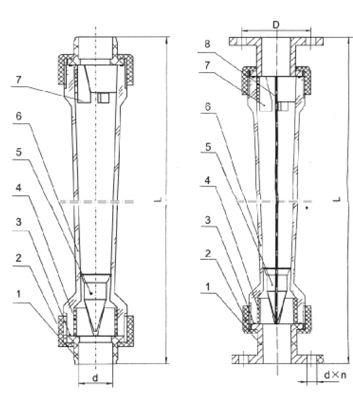

Technical parameters
| 1 | Tube connection material | ABS |
| 2 | Screw material | ABS |
| 3 | O shape sealing ring | Silicon rubber |
| 4 | Bottom stop shaft | HIPE |
| 5 | Float material | ABS Lining |
| 6 | Body material | AS |
| 7 | Top stop shaft | HIPE |
| 8 | Guide rod material | 316 Stainless steel |
| 9 | Accuracy | ±4%FS |
| 10 | Midium | water |
| 11 | Maximum pressure | ≤0.6Mpa |
| 12 | Maximum temperature | 0°-40° |
Demensions
|
Caliber mm |
Dimensions fot long tube | Dimensions fot short tube | Flange connection size | |||||||
| L | d | L | d | L | D | d x n | ||||
|
|
Socket |
Screw Thread
|
Socket | Screw Thread | long tube | short tube | 65 | 14x4 | ||
| 15 | 280 | Φ20 | G½" | 200 | Φ20 | G½" | 320 | 240 | 75 | 14x4 |
| 25 | 380 | Φ32 | G¾" | 226 | Φ32 | G¾" | 432 | 278 | 85 | 14x4 |
| 32 |
|
|
|
288 | Φ40 | G1" |
|
351 | 100 | 18x4 |
| 40 | 417 | Φ50 | G1¼" |
|
|
|
489 |
|
110 | 18x4 |
| 50 | 435 | Φ63 | G1½" | 341 | Φ63 | G1½" | 519 | 435 | 125 | 18x4 |
| 65 |
|
|
|
430 | Φ75 | G2" |
|
522 | 145 | 18x4 |
| 80 |
|
|
|
|
|
|
540 | 160 | 18x8 | |
| 100 |
|
|
|
|
|
|
555 | 180 | 18x8 | |
| 125 |
|
|
|
|
|
|
555 | 210 | 22x8 | |
| 150 |
|
|
|
|
|
|
555 | 240 | 22x8 | |
| Item No. | Measuring range | Remarke |
|
LZS-15S (Long tube) |
6-60L/H | Without guide rod |
| 10-100L/H | ||
| 16-160L/H | ||
| 25-250L/H | ||
| 40-400L/H | ||
| 60-600L/H | ||
|
LZS-25S ( Long tube ) |
60-600L/H | Without guide rod |
| 100-1000L/H | ||
| 160-1600L/H | ||
| 250-2500L/H | ||
| 300-3000L/H | ||
|
LZS-40S ( Long tube ) |
0.4-4m3/h | with guide rod |
| 0.6-6m3/h | ||
| 1-10m3/h | ||
|
LZS-50S ( Long tube ) |
0.4-4m3/h | Without guide rod |
| 0.6-6m3/h | ||
| 1-10m3/h | ||
| 1-10m3/h | ||
| 1.6-16m3/h | With guide rod | |
|
LZS-100S LZS-125S LZS-150S |
8-50m3/h |
Flange connection with guide rod
|
| 12-60m3/h | ||
| 14-90m3/h | ||
| 16-120m3/h | ||
| 20-150m3/h | ||
| 25-180m3/h | ||
| 25-200m3/h |
| Item No. | Measuring range | Remarks |
|
LZS-15S ( S hort tube ) |
6-60L/H | With guide rod |
| 10-100L/H | ||
| 16-160L/H | ||
| 25-250L/H | ||
| 40-400L/H | ||
| 60-600L/H | ||
| 100-1000L/H | ||
|
LZS-25S ( S hort tube ) |
100-1000L/H | With guide rod |
| 160-1600L/H | ||
| 250-2500L/H | ||
| 300-3000L/H | ||
|
LZS-32S ( S hort tube ) |
0.4-4m3/h | With guide rod |
| 0.6-6m3/h | ||
| 1-10m3/h | ||
|
LZS-50S ( S hort tube ) |
0.6-6m3/h | With guide rod |
| 1-10m3/h | ||
| 1.6-16m3/h | ||
|
LZS-65S (Short tube) |
1.6-16m3/h |
With guide rod |
| 5-25m3/h | ||
| 8-40m3/h | ||
| 12-60m3/h | ||
| LZS-80S | 1.6-16m3/h | Flange connection with guide rod |
| 5-25m3/h | ||
|
8-40m3/h |
||
|
12-60m3/h |
