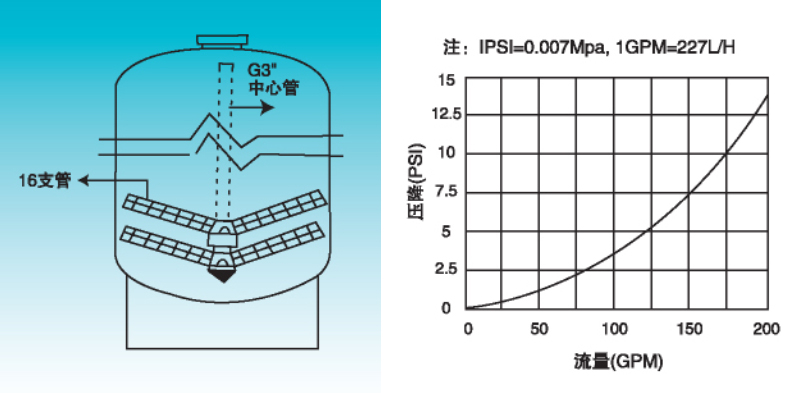

High flow top mount 16 laterals ,3”Riser Tube
[BACK]
Product Details
| Serial No. | Item No. | SIZE (mm) | Diameter(inches/mm) | Slot Size | Top opening | |||||
| A | B | C | D | E | F | |||||
| JD408 | JD8910-2S | 510 | 228 | 53 | 104 | 310 | Φ90(Φ89) | 24" (Φ600) |
0.2~0.3mm |
6"FLG |
| JD409 | JD8256-2S | 630 | 290 | 53 | 104 | 325 | Φ90(Φ89) | 30" (Φ750) | 0.2~0.3mm | 6"FLG |
| JD410 | JD8318-2S | 750 |
350 |
53 | 104 | 340 | Φ90(Φ89) | 36" (Φ900) | 0.2~0.3mm | 6"FLG |
| JD411 | JD8380-2S | 870 | 412 | 53 | 104 | 360 | Φ90(Φ89) | 40" (Φ1000) | 0.2~0.3mm | 6"FLG |
| JD412 | JD8445-2S | 985 | 475 | 53 | 104 | 375 | Φ90(Φ89) | 48" (Φ1200) | 0.2~0.3mm | 6"FLG |
| JD413 | JD8564-2S | 1225 | 600 | 53 | 104 | 400 | Φ90(Φ89) | 56"~65" (Φ1400~Φ1600) | 0.2~0.3mm | 6"FLG |
| JD414 | JD8564-2SL | 1345 | 660 | 53 | 104 | 415 | Φ90(Φ89) | 65"~80" (Φ1600~Φ2000) | 0.2~0.3mm | 6"FLG |
